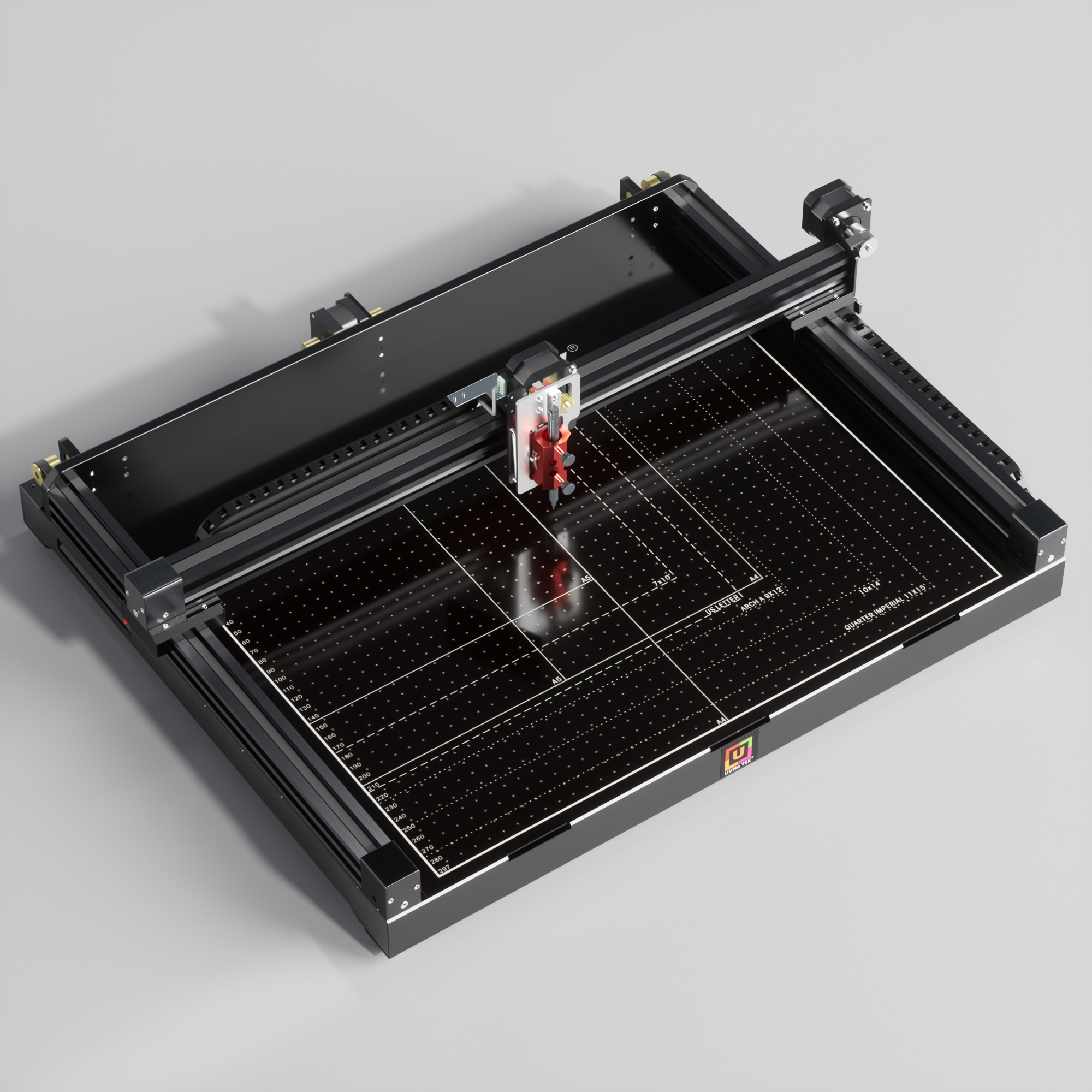

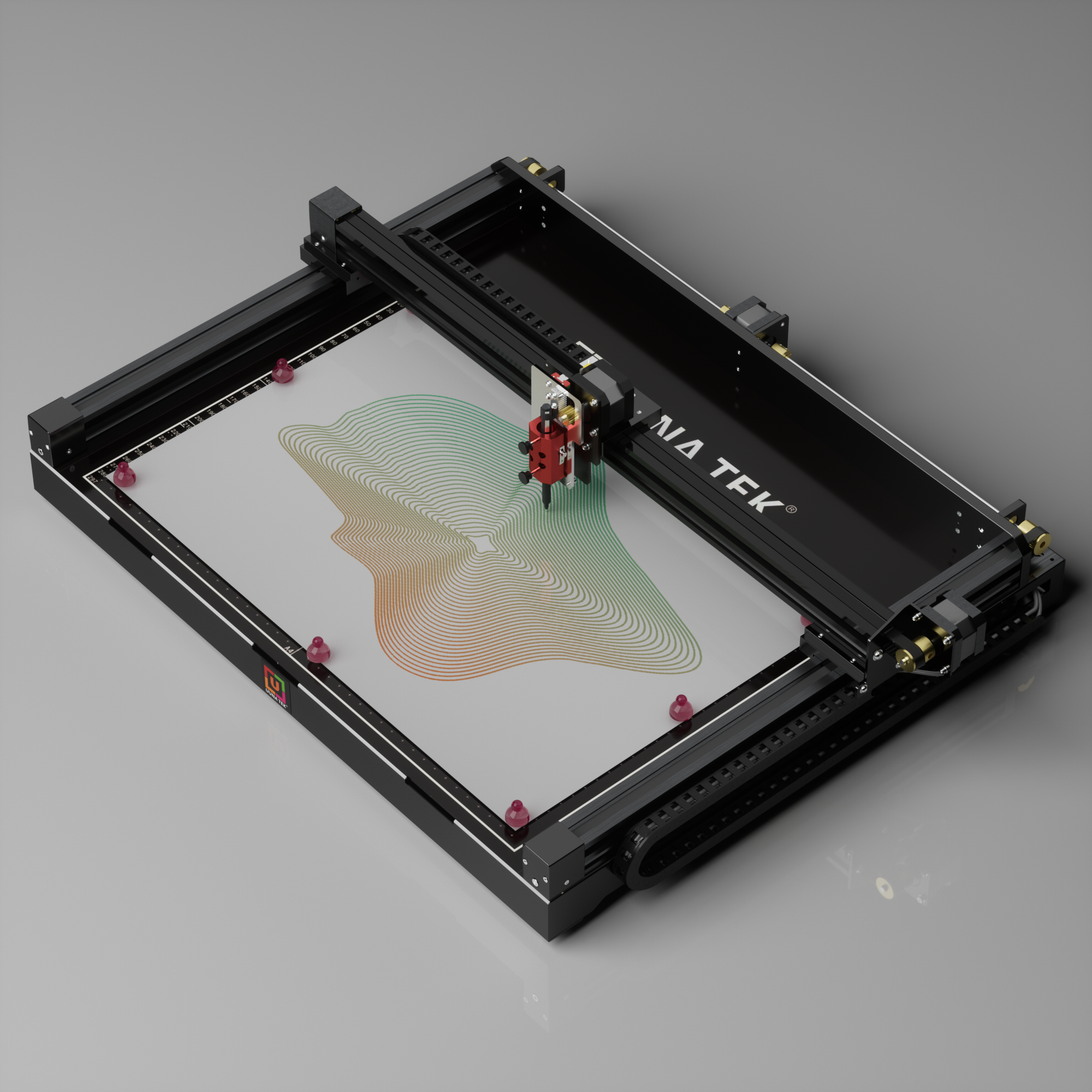

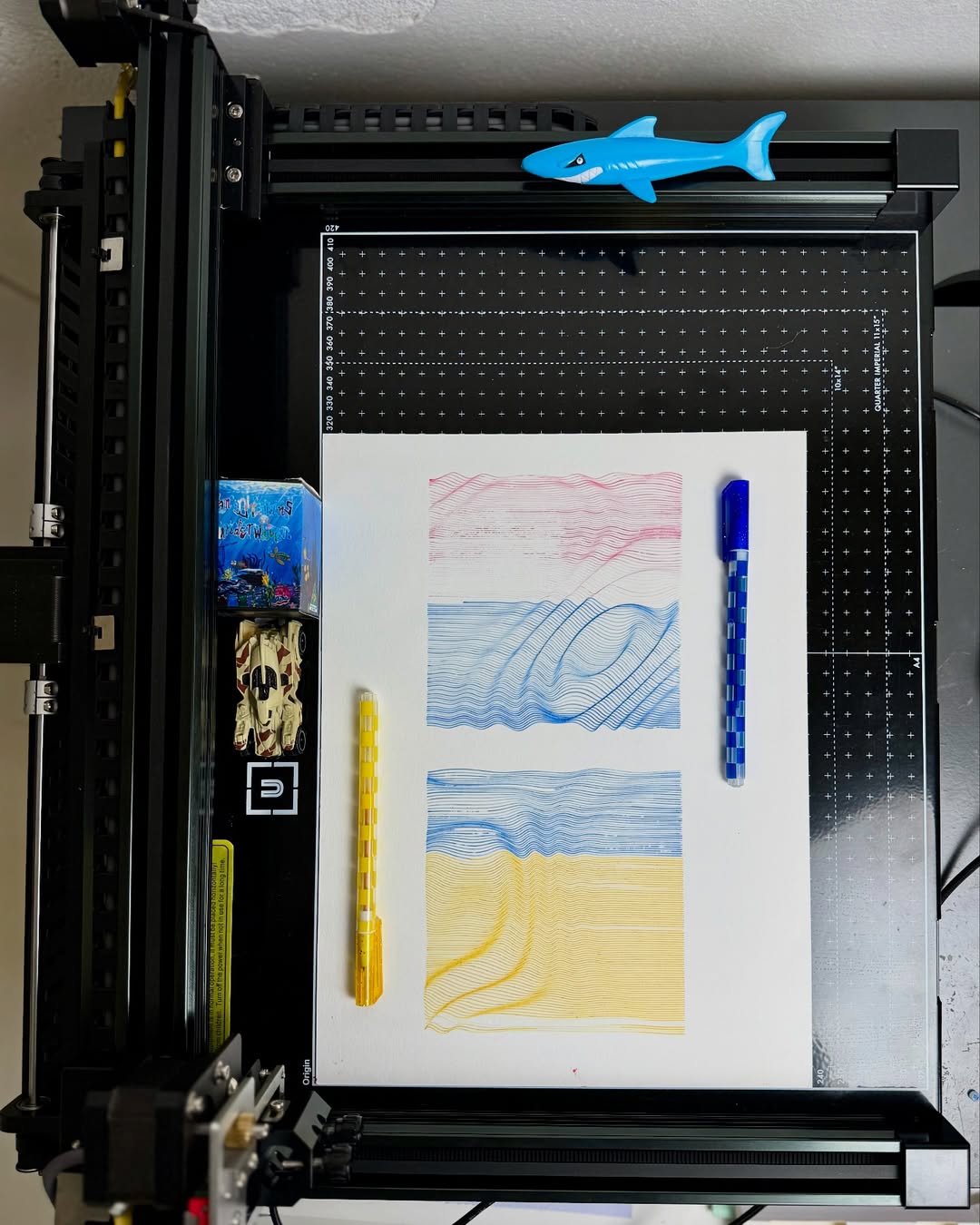

UUNA TEK 3.0 is a professional-grade CAD pen plotter designed for architects, engineers, and industrial designers. It delivers ultra-high precision up to ±0.02mm, ensuring stable and repeatable line quality for technical drawings, architectural plans, and engineering presentations. Supporting A3, A2, A1, A0 and custom large formats up to 4×2m, it provides scalable solutions for different project sizes.

With full compatibility for SVG and DXF files, it integrates seamlessly into CAD workflows. The system features a rigid industrial structure with GRBL control board, DC 12–24V power system, and high-speed motion up to 20,000 mm/min. Preassembled all-in-one design requires no installation, ready to use out of the box. WiFi and SD card offline operation ensure flexible workflow without interruption. Low-noise operation under 60dB makes it suitable for studio and office environments, delivering consistent, engineering-level precision for professional output.

Video featured created by @gen_iart

Precision Driven

Creative Freedom

Large Format Ready

Smooth Performance

1. CAD-Grade Precision Output (Trust Every Line)

Engineered for professional technical drawing accuracy, not decorative output.

  • Up to ±0.02mm repeat positioning accuracy (A3–A2)
  • ±0.05mm precision for large formats (A1–A0)
  • Industrial-grade motion control system
  • No cumulative drift during long plotting jobs

👉 Core value:

Every line is reliable enough for architectural, mechanical, and engineering documentation.

2. Full-Scale Engineering Format Support (A3 to A0 & Beyond)

Built for everything from draft sketches to presentation-level drawings.

  • Supports A3 / A2 / A1 / A0 formats
  • Expandable up to 4×2m custom working area
  • Ideal for architectural boards, engineering sheets, and exhibition panels

👉 Core value:

Converts CAD drawings into true 1:1 physical output at any scale.

3. Seamless CAD Workflow Integration (No Change in Habits)

Works directly with your existing design environment.

  • Supports SVG / DXF standard formats
  • Compatible with AutoCAD, Rhino, Adobe Illustrator, Inkscape
  • G-code and vector path-based control support
  • Image-to-path conversion (JPG / PNG / PDF)

👉 Core value:

No need to change your design workflow—only the output method changes.

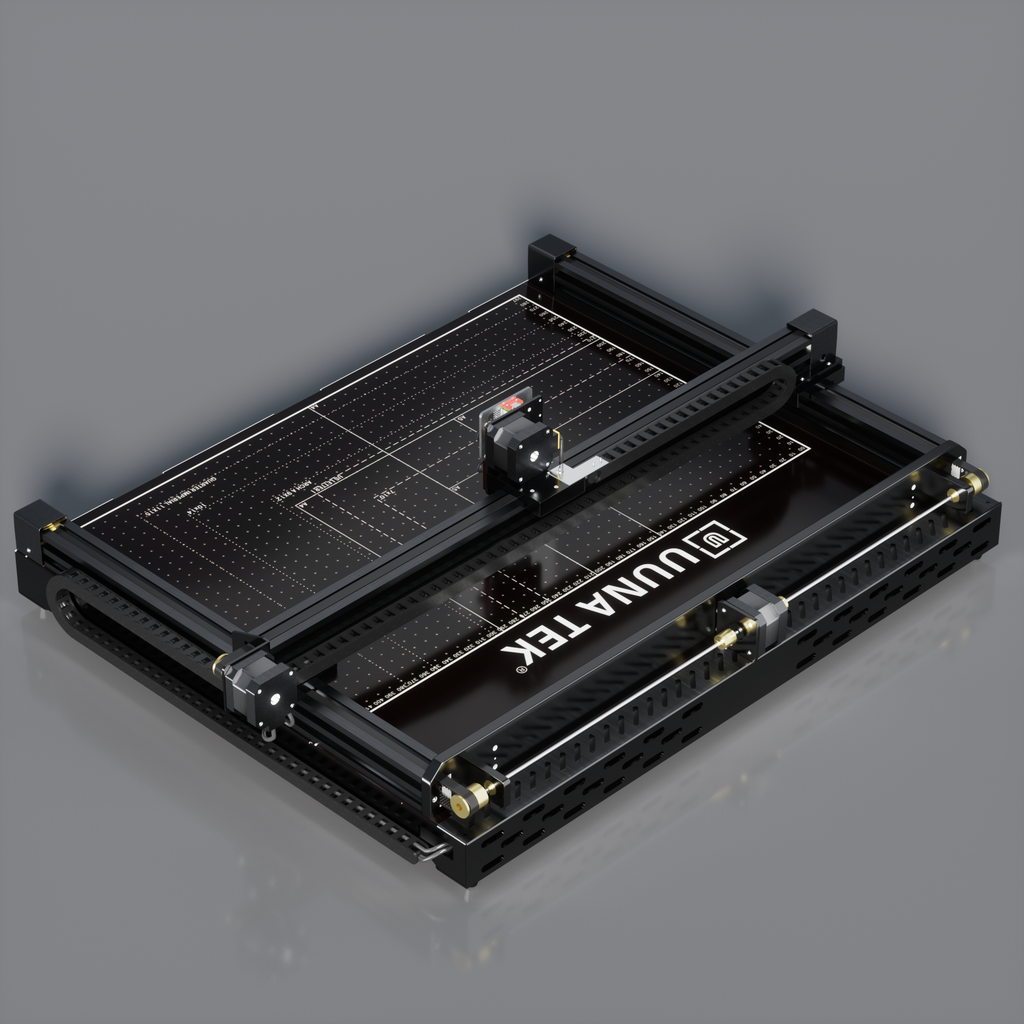

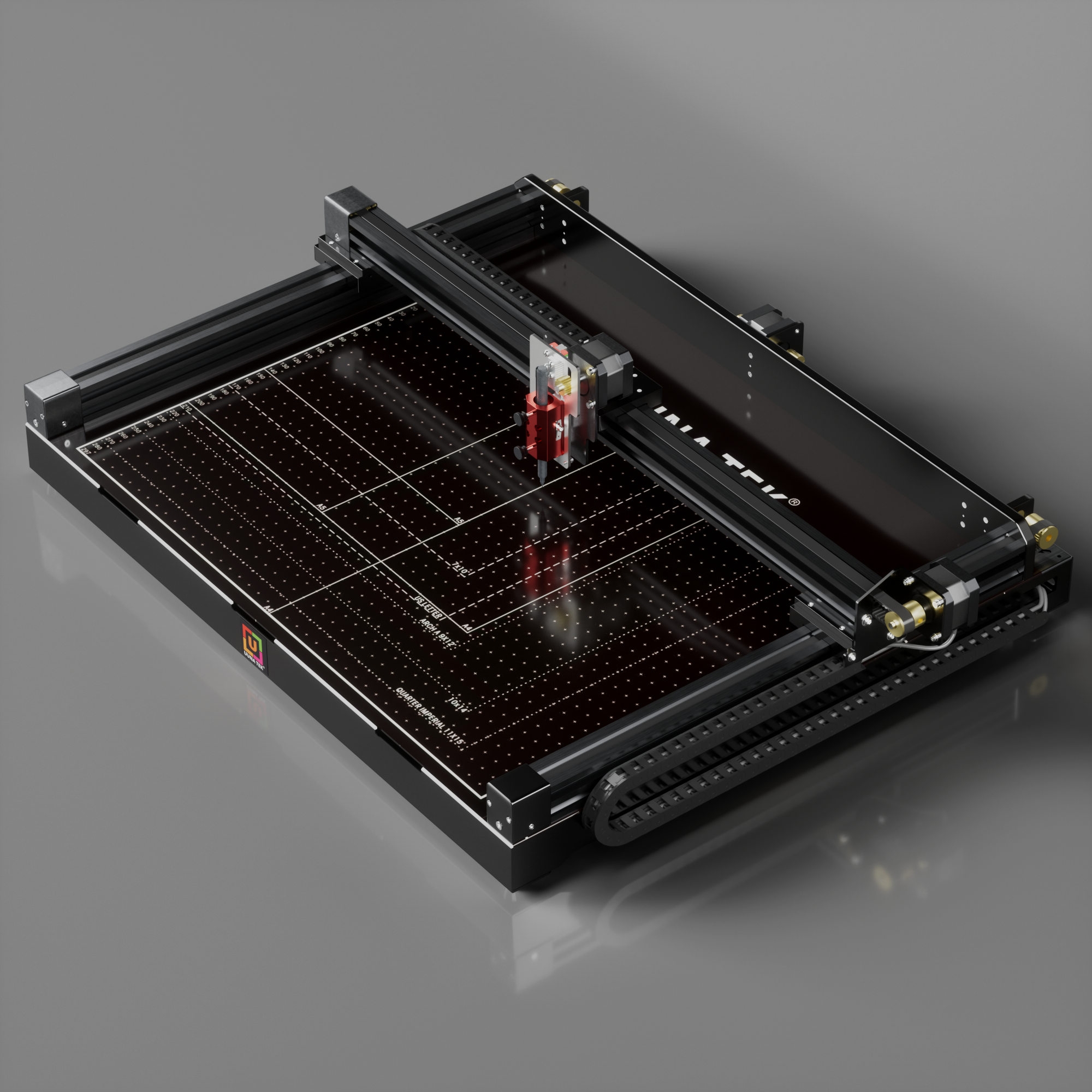

4. Industrial Stability for Long-Hour Engineering Jobs

Designed for complex, long-duration technical drawings.

  • Rigid Q235 steel + aluminum alloy structure
  • High-stability H-frame mechanical system
  • No skipped steps or misalignment during long jobs
  • Handles high-density vector drawings with hundreds of thousands of paths

👉 Core value:

Reliable enough for unattended, full-project engineering output.

5. Office-Ready Industrial Machine (Not a Factory-Only Device)

Professional performance with workspace compatibility.

  • Low noise operation (<60dB)
  • Plug-and-play, no installation required
  • WiFi + SD card offline operation
  • Suitable for offices, studios, and universities

👉 Core value:

Industrial capability that fits directly into a design office.

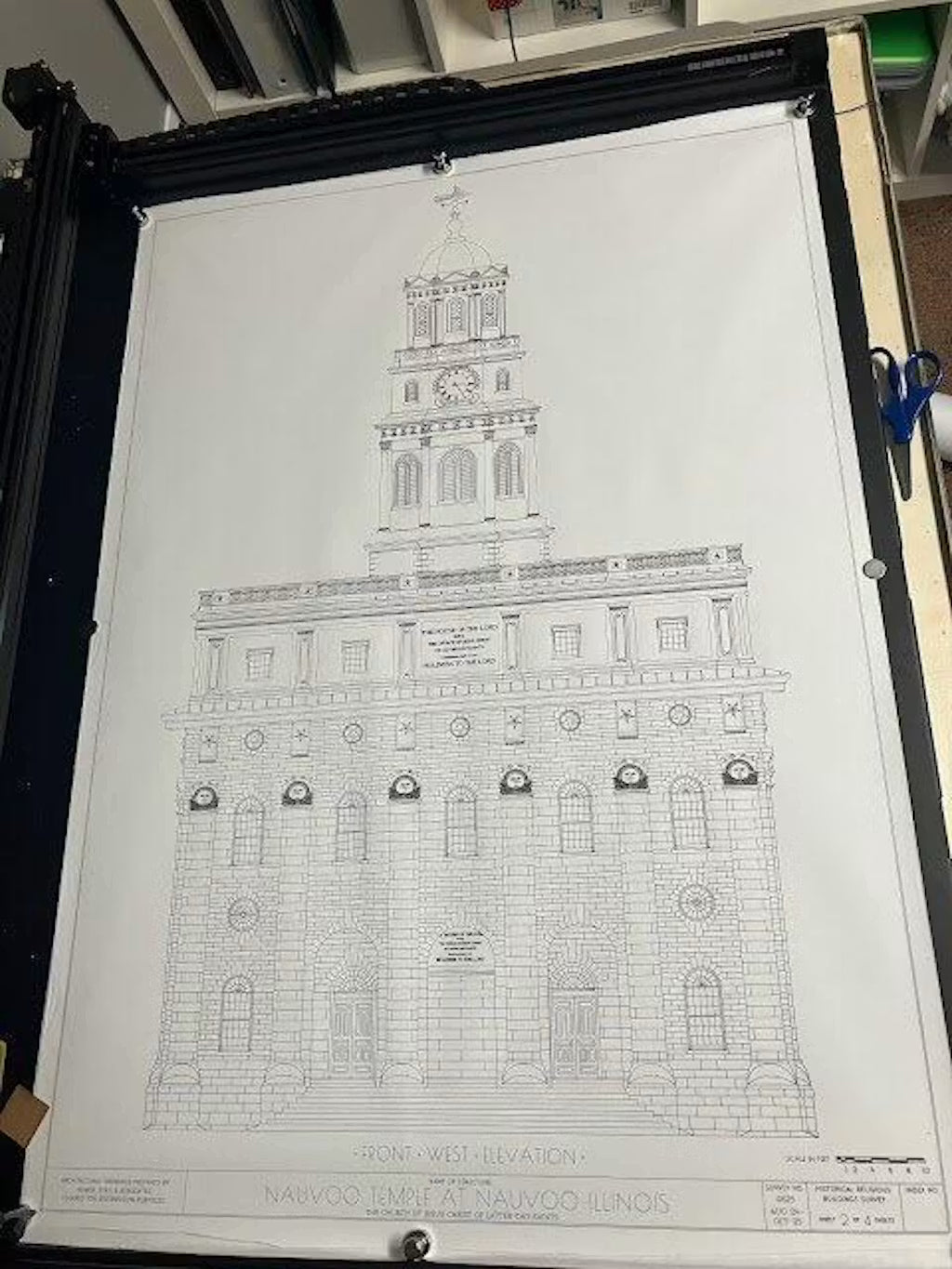

6. From Digital Design to Physical Documentation

Bridges the gap between CAD and real-world presentation.

  • Turns CAD drawings into physical engineering sheets
  • Produces presentation-ready architectural boards
  • Enables manual-style technical annotations
  • Reduces dependency on printing and manual markup

👉 Core value:

Makes design communication physical, clear, and tangible.

7. High-Speed, Stable Plotting System

Balanced performance for both speed and accuracy.

  • Up to 20,000 mm/min movement speed (X/Y/Z)
  • Multiple operation modes (high-speed / precision / silent)
  • Stable long-run performance without drift

👉 Core value:

Fast enough for production, precise enough for engineering.

8. Engineer-Friendly Control System (Low Learning Curve)

Designed for practical daily use in real workflows.

  • Wireless WiFi control
  • SD card standalone operation
  • Simple software workflow
  • Easy integration with design tools

👉 Core value:

No engineering complexity required to operate.

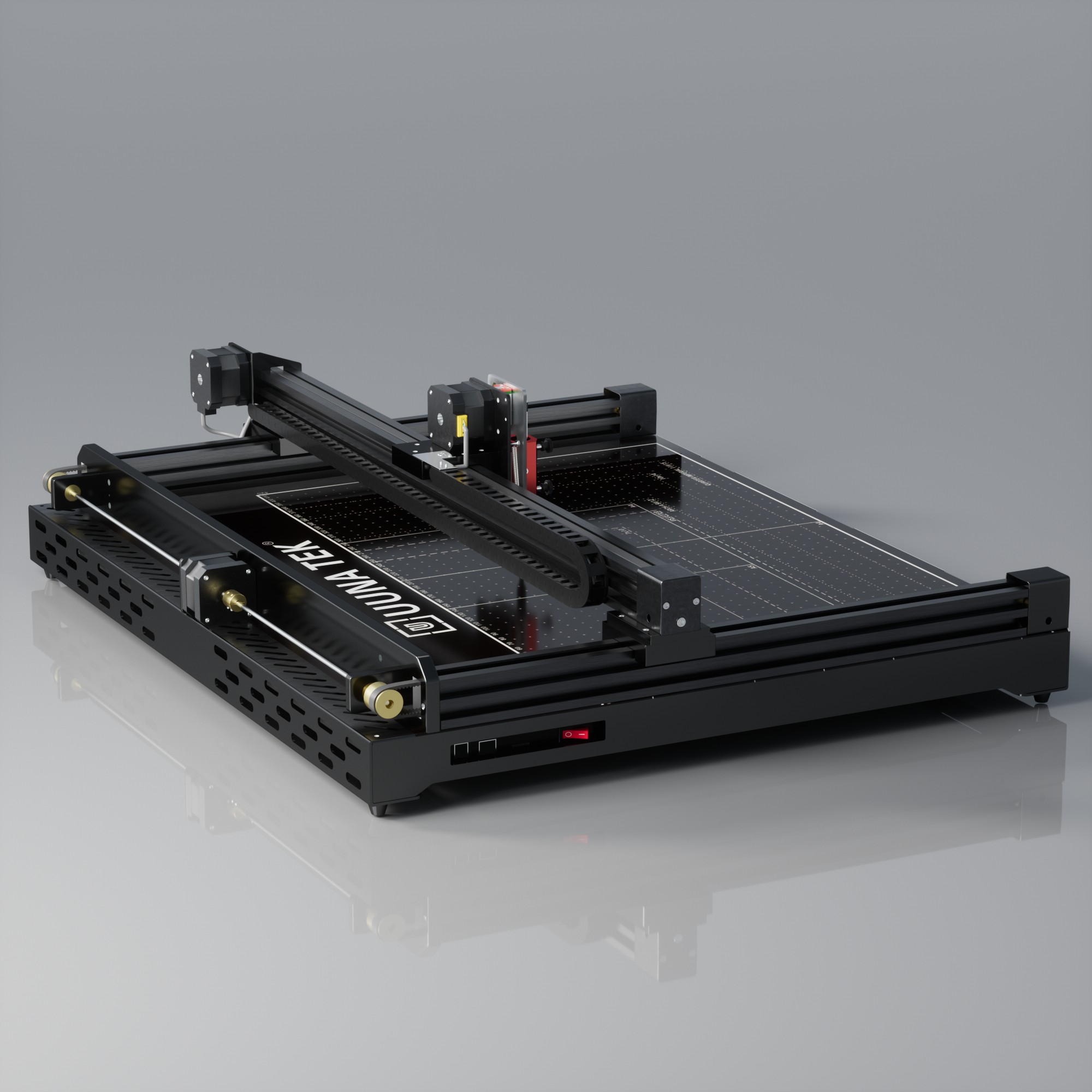

9. Modular Industrial Design (Built for Long-Term Use)

Designed for maintenance, upgrades, and durability.

  • Modular mechanical structure
  • Adjustable belt tension system
  • Industrial drag-chain cable protection
  • Easy part replacement and maintenance

👉 Core value:

A long-term engineering tool, not a disposable device.

10. Multi-Discipline Engineering Applications

One system, multiple professional use cases.

  • Architecture drawings (plans, sections, presentation boards)
  • Mechanical engineering CAD output
  • Industrial product design documentation
  • Academic and STEAM education
  • Exhibition and design communication boards

👉 Core value:

A single platform for multiple engineering disciplines.

UUNA TEK 3.0 – Technical Specifications

🧱 Frame & Structure

Frame MaterialsQ235 carbon steel + aluminum alloy
StructureIndustrial-grade rigid frame, preassembled all-in-one design
Motion SystemRack & pinion + linear guide system

🧠 Control System

MotherboardGRBL-based control board
G-code SupportYes (UART protocol)
ConnectivityUSB + WiFi + SD card offline mode

⚡ Electrical Specifications

Rated VoltageDC 12V – 24V
Power InputAC 110V – 230V
Power OutputDC 12V
Rated Power20W

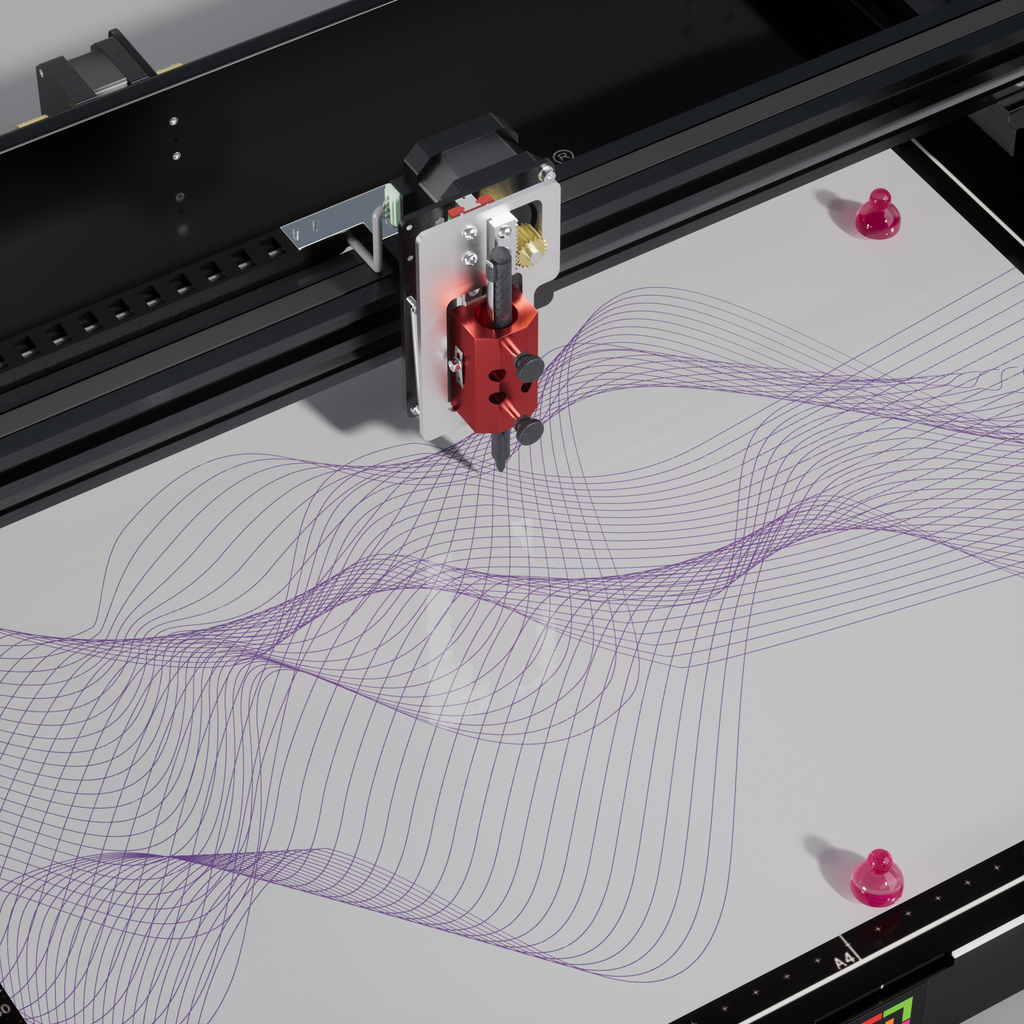

🎯 Precision & Performance

Accuracy (A3–A2)±0.02 mm
Accuracy (A1–A0)±0.05 mm
Large Format Accuracy±0.1 mm

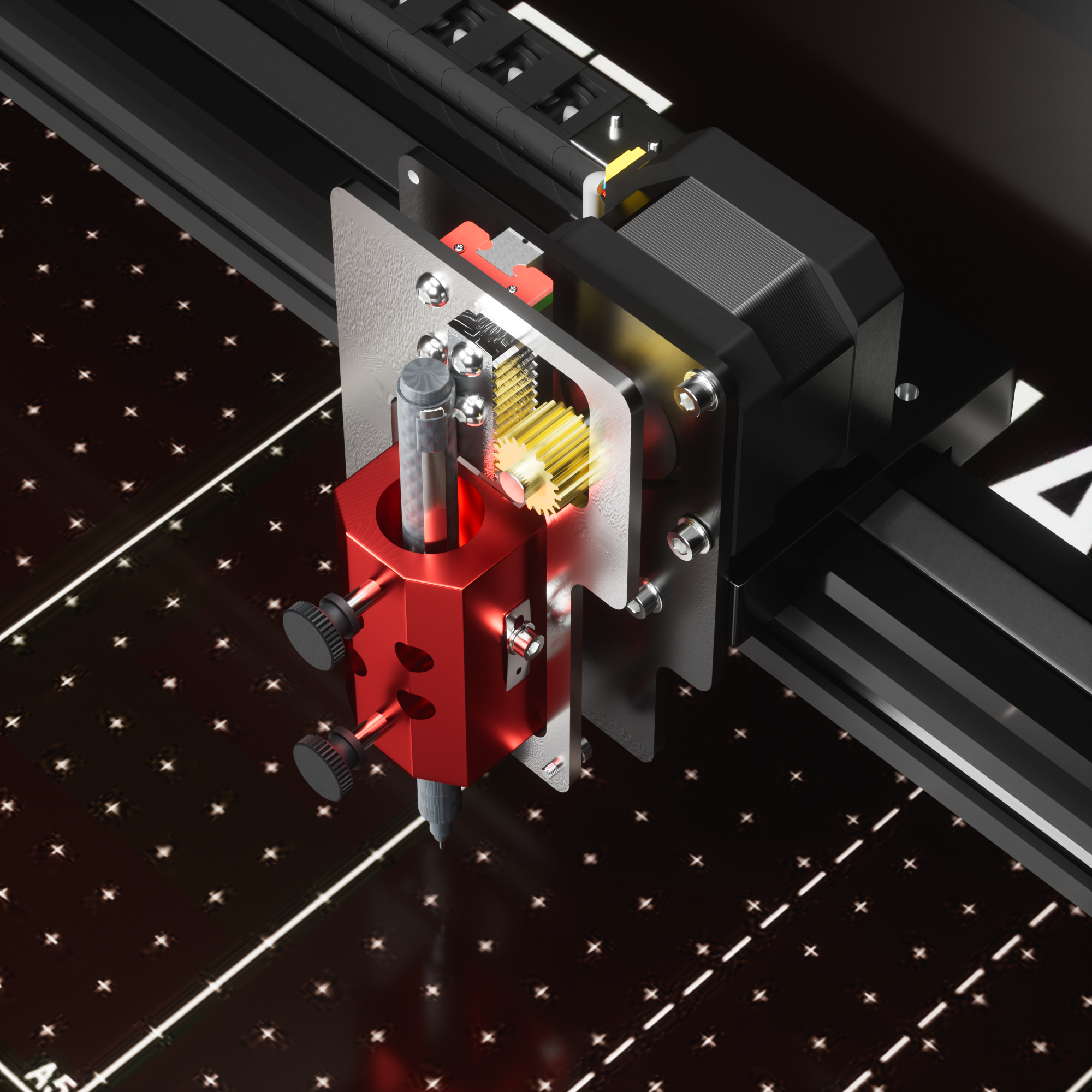

Pen Angle0° – 90° adjustable
Max Writing Thickness30 mm (up to 40 mm modified)

📐 Working Area

A3420 × 297 mm
A2594 × 420 mm
A1841 × 594 mm
A01189 × 841 mm

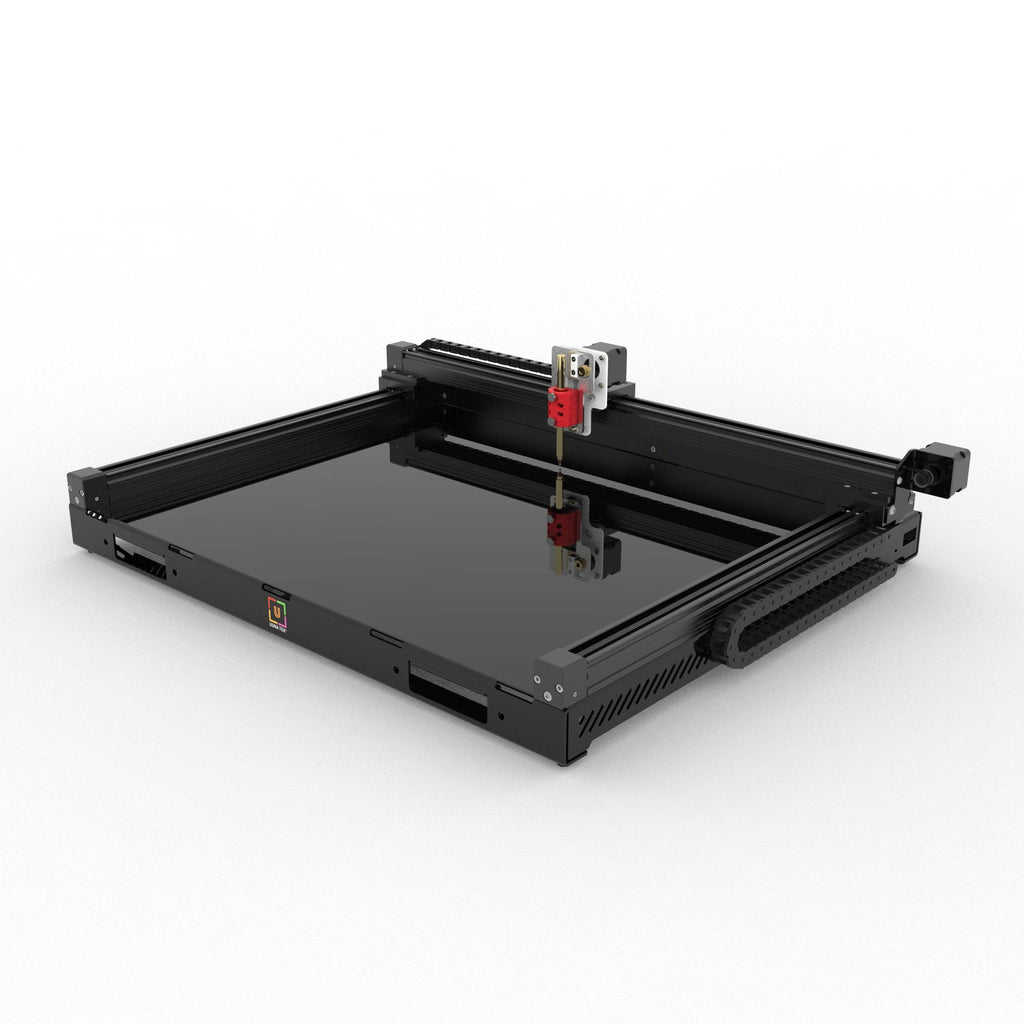

📦 Dimensions & Weight

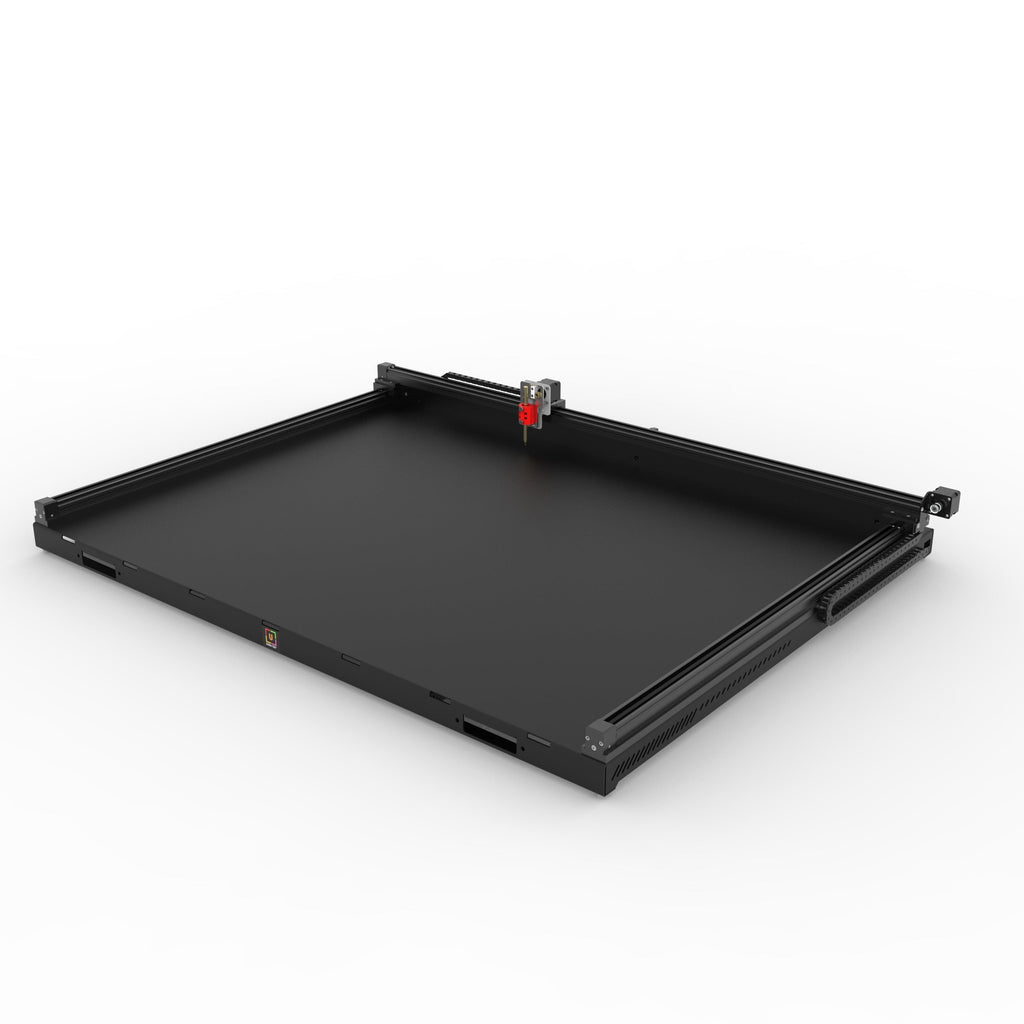

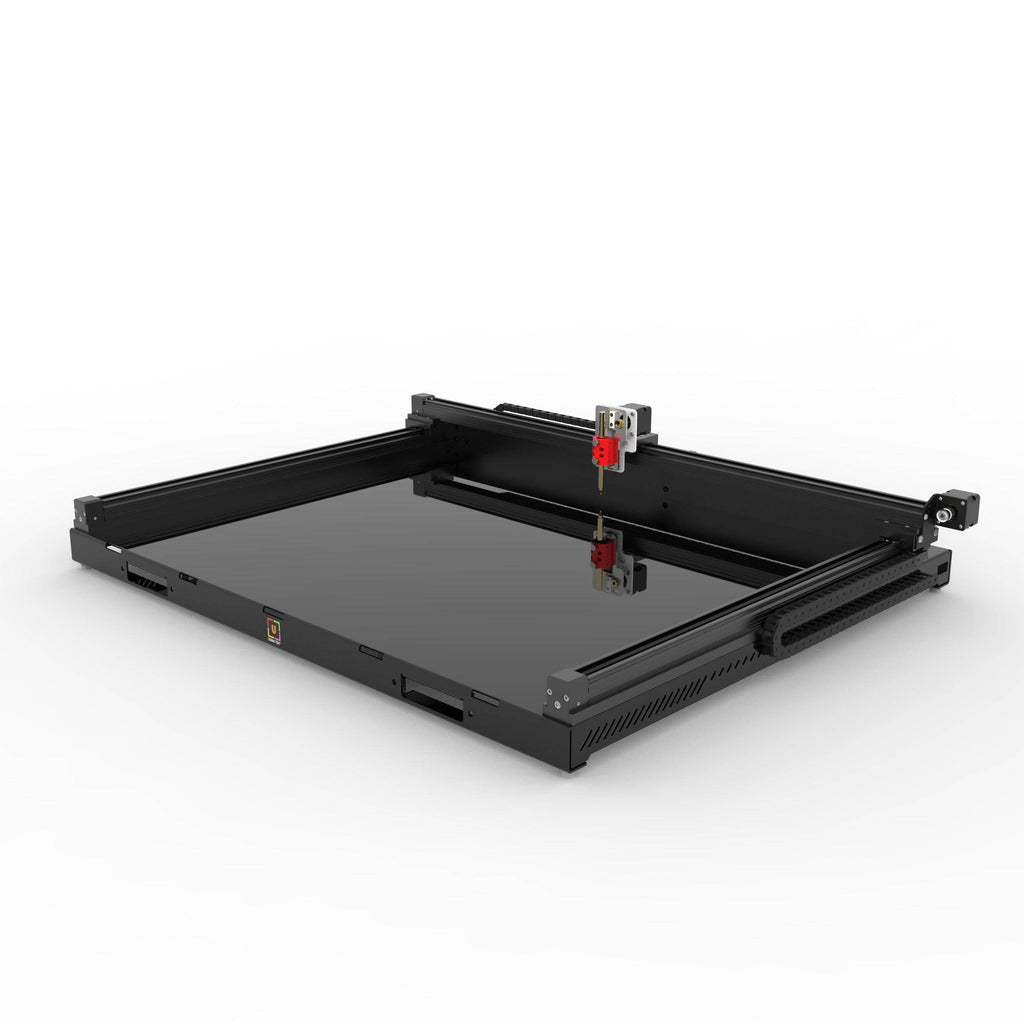

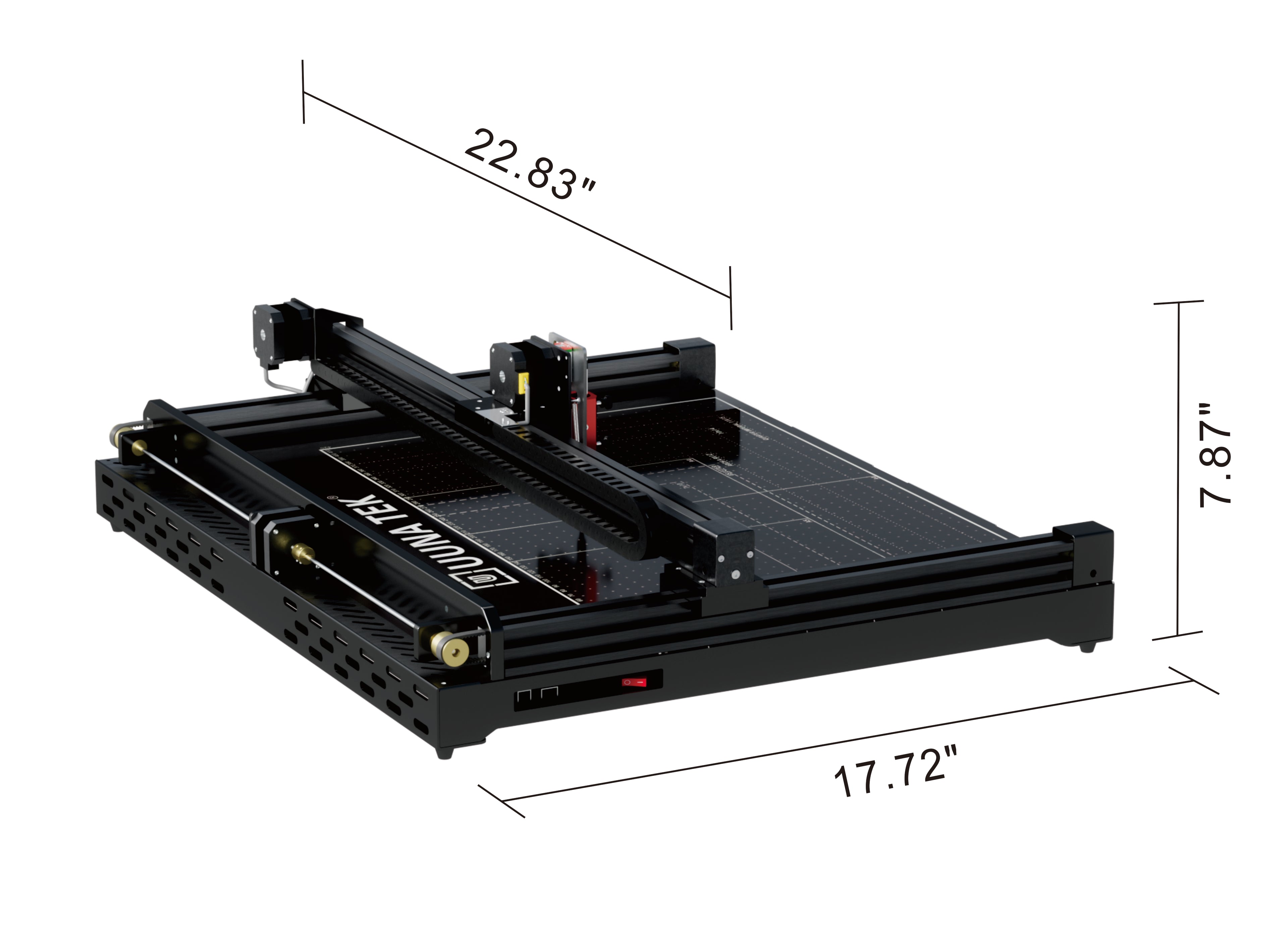

A3575 × 450 × 194 mm / 11 kg
A2758 × 580 × 194 mm / 17.5 kg
A11018 × 785 × 205 mm / 32 kg
A01366 × 1030 × 205 mm / 48 kg

💻 Software & Formats

SoftwareUUNA TEK Software, Inkscape, UGS, LightBurn, LaserGRBL
Input FormatsSVG, DXF, JPG, PNG, BMP, PDF
OS SupportWindows & macOS (Intel & Apple Silicon)

⚙️ Motor System

X Axis42 stepper motor
Y Axis42 / 57 stepper motor
Z Axis42 stepper motor

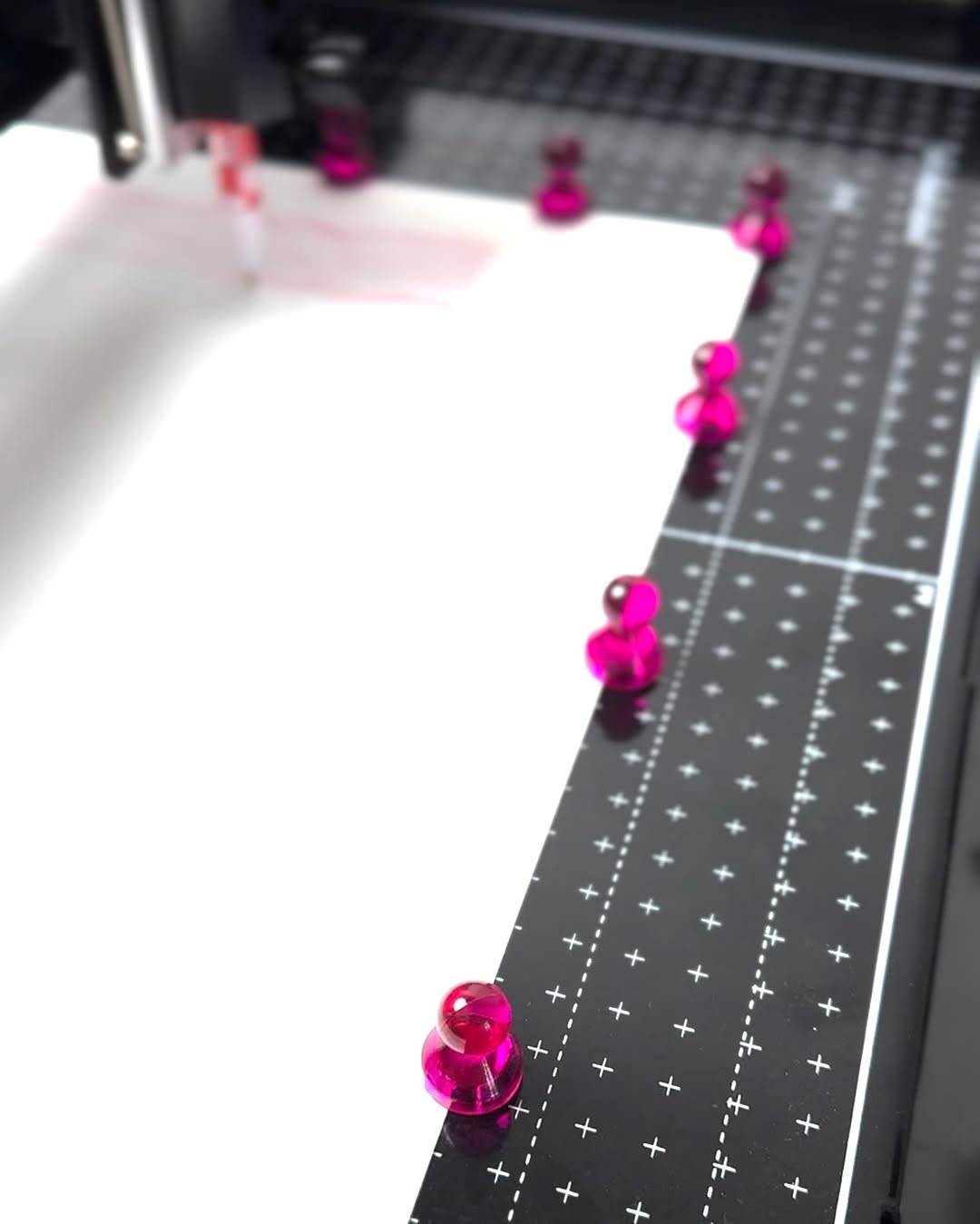

🧱 Base Plate

Standard models (A0–A3): 2mm steel plate
Large custom models (>2m): 8mm tempered glass

Frequently asked questions

1. Can this replace CAD printers for architectural drawings?

Yes. It is widely used as a vector-based output tool for CAD drawings (SVG/DXF workflow).

However, it does not “print like inkjet”—it creates physical line drawings, which many architects prefer for presentations, concept boards, and exhibitions.
2. Is the accuracy good enough for technical drawings and engineering plans?

Yes. It supports up to ±0.02mm repeat positioning accuracy (A3–A2 range).

This is sufficient for:

  • architectural linework
  • mechanical drawings
  • schematic diagrams
  • precision artwork reproduction
3. Can it handle large-format architectural drawings (A1 / A0)?

Yes. It supports:

  • A3 / A2 / A1 / A0
  • custom sizes up to 4×2m

This is especially useful for:

  • construction site drawings
  • exhibition boards
  • large presentation plots
4. Is it compatible with AutoCAD, Rhino, Illustrator or Revit?

Indirectly yes. It works via exported vector formats:

  • SVG (recommended)
  • DXF (via conversion)
  • PDF (vector-based)

Typical workflow:
CAD software → export SVG/DXF → plotter software → draw
5. How long does a full A1 or A0 drawing take?

Depends on complexity:

  • simple line drawing: 30–90 min
  • detailed architectural plan: 2–8 hours
  • highly dense artwork: 10+ hours

Reddit users often mention it is slower than printers but valued for aesthetic output.
6. Does it support pen pressure or different line weights?

Yes, indirectly:

  • supports multiple pen sizes
  • adjustable Z-axis height (0–90° angle control)
  • pressure is mechanical (not digital pressure simulation)

Line variation depends on:

  • pen type
  • speed settings
  • multiple passes
7. Is it stable for long engineering drawing jobs?

Yes. Designed for long runs with:

  • industrial-grade rails
  • anti-slip rack & pinion system
  • cable drag chain protection
  • thermal stable motors

Many users run multi-hour or overnight plotting jobs.
8. Can it run without a computer?

Yes.
It supports:

  • SD card offline mode
  • WiFi file sending (optional module)

This is frequently mentioned on Reddit as a key advantage for workshop environments.
9. How difficult is setup and calibration?

Compared to DIY plotters:

  • fully preassembled (no mechanical building required)
  • basic calibration needed (pen height, origin, material alignment)

Most users report:

  • first setup: 30–60 minutes
  • learning curve: 1–3 days
10. Is it worth it for architects or engineers vs printing services?

Typical Reddit consensus:

  • ✔ worth it for iterative design work
  • ✔ excellent for physical presentation & portfolio output
  • ✔ useful for studio / lab / creative offices
  • ✘ not a replacement for mass printing or PDF submission workflows
