Proper setup is essential if you want accurate writing and drawing results. In this guide, you’ll learn how to set home point for iDraw, perform precise alignment, and fully calibrate your iDraw for consistent output. Whether you're a beginner or running batch jobs, correct calibration ensures your back to home function for pen plotter works flawlessly every time.
👉 Recommended Product: idraw 2.0 a4 pen plotter
👉 View Product Page
Why Calibration Matters for iDraw Pen Plotters
Before starting any project, calibration ensures:
- Accurate positioning of every stroke
- Proper alignment between design and paper
- Smooth execution of repetitive tasks
- Reliable back to home function for pen plotter
Without calibration, even small misalignments can affect your final output—especially for detailed designs or batch writing tasks.
Step 1: Define the Default Home Position
The first step is to set home point for iDraw.

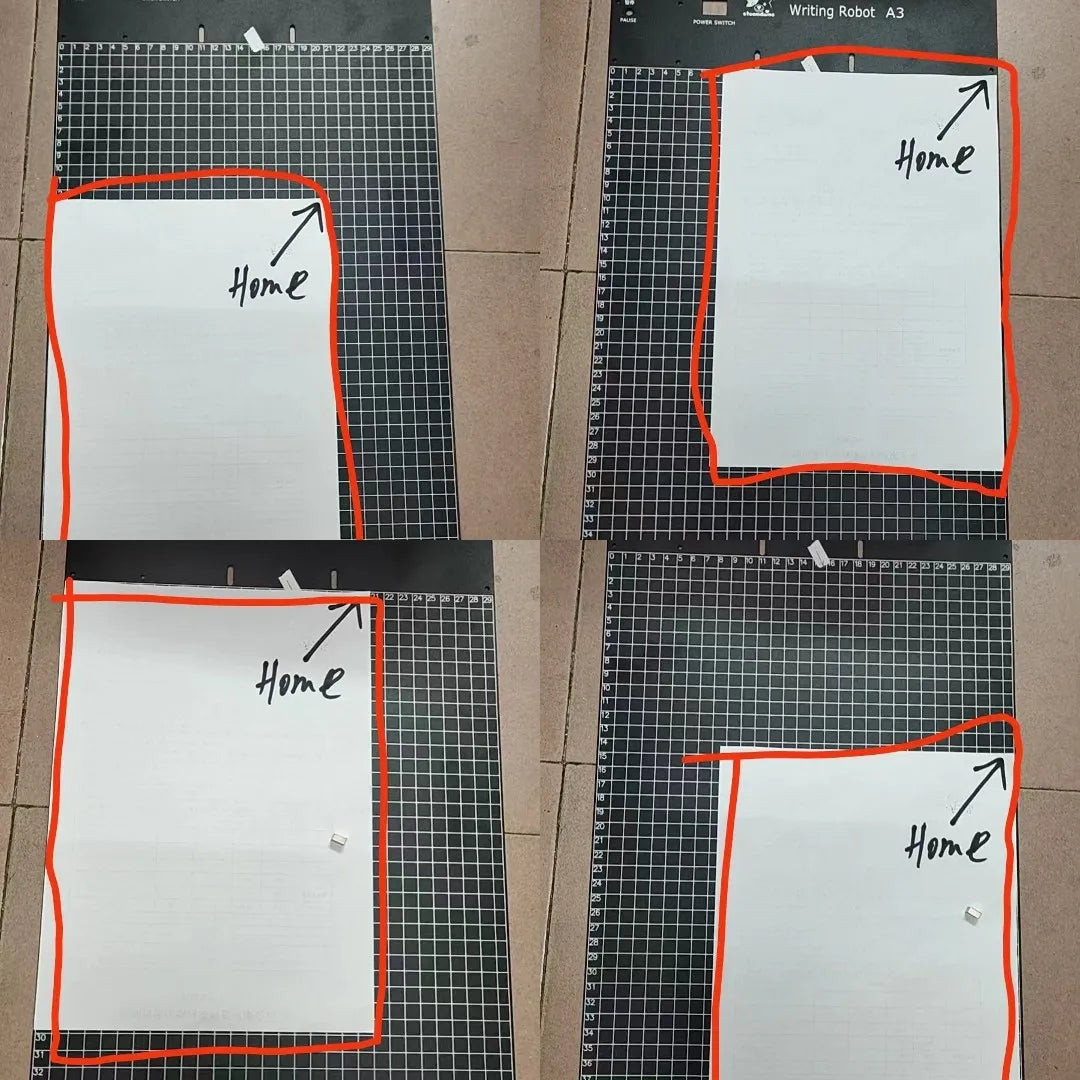

- The default home position is typically the upper-right corner of your working area
- This point acts as the origin for all plotting actions
- Every drawing or writing task starts relative to this position
Tip: Always confirm the home position before starting a new project to avoid offset errors.
Step 2: Align the Pen with the Paper
Next, make sure your pen is correctly positioned:
- Place your paper on the working surface
- Move the pen manually or via software controls
- Align the pen tip precisely with your chosen starting corner
Even if you place the paper in a different area, you must redefine the starting point accordingly.
Step 3: Prepare Before Plotting
Before running any file:
- Ensure the pen is positioned exactly at the starting point
- Double-check paper placement and stability
- Confirm that your home point matches your design setup
This step is critical to calibrate your iDraw for repeatable and accurate results.
Step 4: Adjust Software Settings (Portrait Mode)
When working in portrait layout:
- The software assumes the origin (home point) is at the upper-right corner
- Make sure your design orientation matches the physical paper
- Verify dimensions before sending the job
Incorrect orientation can lead to shifted or rotated outputs.
Step 5: Adjust Software Settings (Landscape Mode)
For landscape designs:
- The system may automatically rotate the layout by 90 degrees
- Ensure your paper orientation matches the software preview
- Reconfirm alignment before starting
This ensures the back to home function for pen plotter returns to the correct position after each task.
Final Check: Test the Calibration
Before full production, run a quick test:
- Draw a simple shape or write a short line
- Check alignment and margins
- Adjust if needed
This quick test helps verify that you’ve successfully completed the process to calibrate your iDraw.
Best Practices for Consistent Results
- Always reset and confirm the home point before batch jobs
- Use stable paper positioning to prevent shifting
- Save your templates for repeated workflows
- Regularly check alignment if switching materials
Why Choose iDraw 2.0 A4 Pen Plotter?
- High precision with stable motion control
- Easy setup and calibration workflow
- Reliable home positioning system
- Ideal for writing, drawing, and batch automation
The idraw 2.0 a4 pen plotter is a practical solution for anyone looking to streamline creative or repetitive tasks with precision.
Conclusion
Learning how to properly set home point for iDraw and complete calibration is key to getting the best performance from your machine. With the right setup, your pen plotter will deliver accurate, repeatable, and professional results every time.
